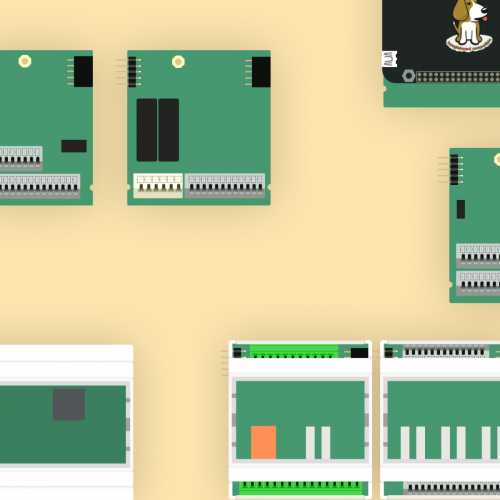

emBRICK products
I/O Brick_Building-Automation:
4x current converter, 2/4-wire
3x voltage converter, 400V, 2-wire
for external current transformer up to 0.1A sek.- I/O Brick_Building-Automation:
4x current converter, 2/4-wire
3x voltage converter, 400V, 2-wire
external current transformer up to 1A sek. - I/O Brick_Building-Automation:
4x 230V-Dimmer, phase angle, lead/trail - I/O Brick_Building-Automation:
4x LED-Dimmer, const. current, 12-40V, 0..350mA - I/O Brick_Building-Automation:
4x LED-Dimmer, const. current, 12-40V, 0..700mA - I/O Brick_Building-Automation:
4x LED-Dimmer, PWM, 12-40V - I/O Brick_Building-Automation:
6x Motion detection, 5V, 2/3-wire
2x LDR, LDR07, 2-wire - I/O Brick_Building-Automation:
8x Temperature, KTY, 2-wire, -30..80°C - I/O Brick_Building-Automation:
8x Temperature, KTY, 2-wire, -5..45°C - Carrier-Board for SubBrick
2x SubBrick-Connector - not isolated - I/O Brick_General-Purpose:
2x Multi-Input, each as:
- digital Input ... OR
- pulse Input (selectable pullup) ... OR
- analog Input 0..10V ... OR
- analog Input 0..20mA (only for input 1l)
2x Analog-Outputs, both outputs 0..10V - I/O Brick_Process-Control:
2x Multi-Input, each as:
- digital Input ... OR
- pulse Input (selectable pullup) ... OR
- analog Input 0..10V ... OR
- analog Input 0..20mA (1 channel)
2x Analog-Outputs, one 0..10V, one 0..20mA output - I/O Brick_Process-Control:
2x Multi-Input, each as:
- digital Input ... OR
- pulse Input (selectable pullup) ... OR
- analog Input 0..10V ... OR
- analog Input 0..20mA (1 channel)
2x Analog-Outputs, both outputs 0..20mA - I/O Brick_Process-Control:
2x Relay-Output, NO, potential free
4x Relay-Output, CO, potential free
